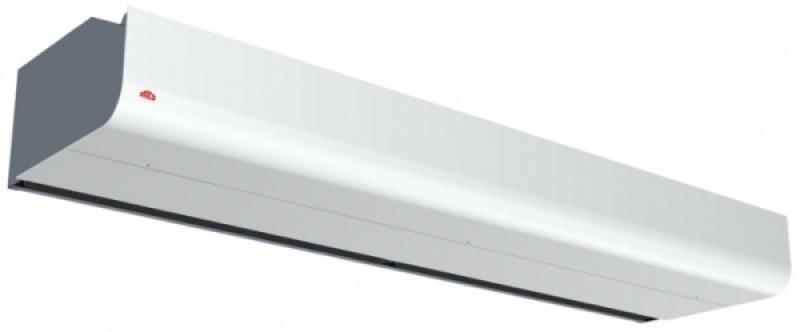

Perdea de aer cu montaj orizontal FRICO PA2510E05 trifazica L=1 ml
Descriere
Thirty years of air curtain development in the demanding Scandinavian climate has given FRICO a unique platform to create air curtains with optimal door protection by using Thermozone technology.
Thermozone air curtains are optimized in:
- airflow geometry;
- performance;
- level of noise.
Airflow geometry:
Air curtains were developed so as to obtain low sound level and turbulence, without influencing the efficiency.
Performance:
There is a balance between air volume and its speed, which leads to optimum efficiency.
It is considered the fact that the high air speed generates high turbulence and air noise, and the air volumes require high heating power.
Level of noise:
FRICO mainly focuses on the level of noise and constantly works to improve it, the type of ventilation used and the optimization of noise.
The level of noise is an environmental factor at least as important as light, fresh air and ergonomics.
Attention given to low noise level is getting higher.
Thanks to air curtains, both in summer and winter, a real barrier, that prevents effectively the cold air from penetrating the room, is formed.
Meanwhile, the air curtains prevent penetration into rooms of various pollutants, dust and insects.
FRICO PA2510E05 air curtain is supplied with smart control and is ideal for all rooms with heavy traffic such as offices, restaurants, hotels, and industrial areas.
Product specifications:
- Prepared for the SIRe control system whose pre-programmed default settings and many features make it easy to install and use the air curtain.
- Recommended installation height 2,5 m
- Horizontal mounting
- 3 fan steps
- Protection class IP20
- Wall brackets included

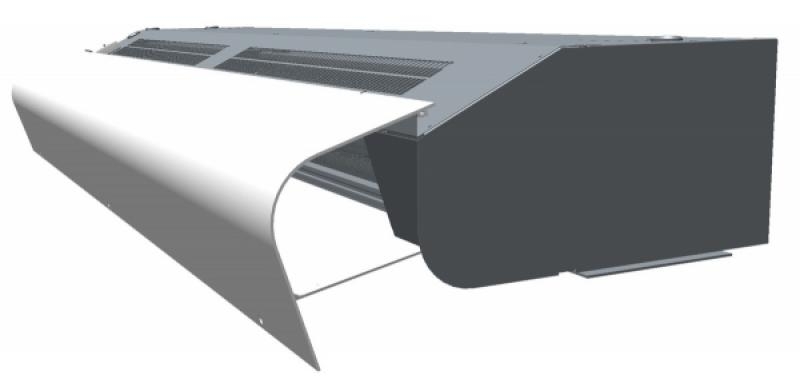

- The front is easy to remove, which facilitates installation and allows easy maintenance
- Corrosion proof housing made of hot zinc-plate and powder enamelled steel panels. Colour front: white, RAL 9016, NCS S 0500-N. Colour grille, rear section, ends and brackets: grey, RAL 7046.
Application
The PA2510E05 creates a temperature dividing air barrier that effectively prevents cold drafts and gives excellent heating comfort in door ways, such as shops, offices and public offices. The air curtain has many intelligent and energy saving features which provide fully automatic protection for the entrance, adaptable to each area of use.
Design
The PA2510E05 has a modern and stylish design developed to fit all entrances. A recess on the upper side of the unit with electrical heating simplifies installation and makes it more attractive.The front can be finished in any colour to perfectly match the environment.

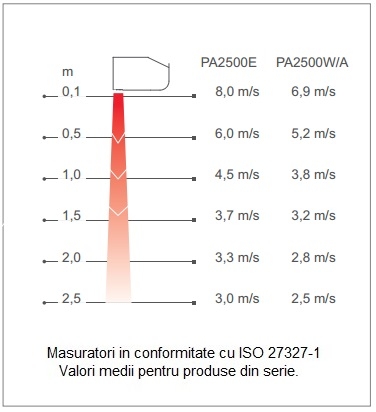

Air velocity profile
HOW TO CHOOSE THE SUITABLE AIR CURTAIN:
- the entire length of the opening should be covered;
- the air flow should be sufficient for the opening height. Door loading in different windy or pressure conditions, the frequency of door traffic should also be considered;
- a balanced ventilation is essential;
- the air curtains cannot prevent excessive currents or strong winds.
Caracteristici
Lungime (mm) | 1050 |
Putere motor (W) | 120 |
Debit de aer maxim (mc/h) | 1400 |
Δt | 17/10.5 |
Numar trepte de putere | 3 |
Alimentare (V) | 400~ |
Frecventa (Hz) | 50 |
Putere (W) | 5000 |
Nivel de zgomot maxim dB(A) | 51 |
Amperaj (A) | 7.2 |
Marca produs | FRICO |
Alte detalii | Δt- cu cat creste temperatura aerului evacuat atunci cand perdeaua de aer functioneaza la putere maxima, iar ventilatorul functioneaza pe treapta min/max de viteza. Nivelul de zgomot este calculat la o distanta de 5m fata de unitate, factor directio |
Telecomanda | Nu |
Montaj | Orizontal |
Fabricat in | Suedia |
Mod de functionare | Incalzire |
Gama de lungime (mm) | 1000 |
